Professional CNC Deep Hole Drilling Machine For Industrial Applications
Product Description:

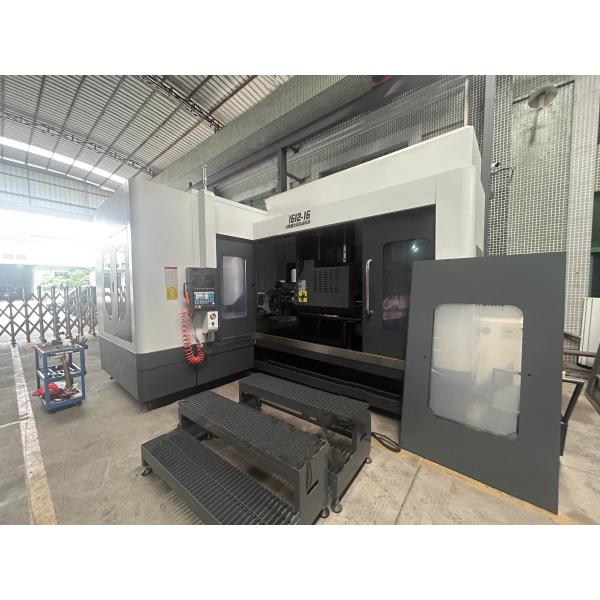

CNC Deep Hole Drilling Machine
Product Overview
The CNC Deep Hole Drilling Machine is a powerful and advanced drilling machine that is designed for deep hole drilling operations. It is equipped with cutting-edge technology and high-quality components to ensure high precision and efficiency in drilling. With its vertical design and CNC control system, it allows for automatic operation and precise control, making it an ideal choice for various industrial applications.
Automatic Operation: The vertical design and CNC control system allow for automatic operation, reducing the need for manual labor and ensuring consistent drilling results.
Applications
The CNC Deep Hole Drilling Machine is suitable for a wide range of industrial applications, such as aerospace, automotive, oil and gas, and mold making industries. It is ideal for drilling deep holes in various materials, including steel, aluminum, and other metals.
Conclusion
The CNC Deep Hole Drilling Machine is a reliable and efficient solution for deep hole drilling operations. With its high precision, high efficiency, and automatic operation, it can greatly improve productivity and reduce costs for industrial applications. Backed by a 1-year warranty, this machine is a valuable investment for any business looking for high-quality and high-performance drilling equipment.
Technical Parameters:
| Item | Specifications | THD-640 | THD-850 |
| Diameter of drilling | mm | 1.0-16 | 1.0-25 |
| Maximum drilling depth | mm | 180 | 200 |
| Worktable Size | mm | 700*420 | 1000*500 |
| Load Bearing Of Worktable | mm | 300 | 600 |
| Spindle Hole Taper | mm | BT40-120 | BT40-150 |
| Max Rotary Speed Of Spindle
| mm | 8000 | 8000 |
| Precision Of Spindle Inner Hole | mm | ±0.002 | ±0.002 |
| Distance From Spindle Nose To worktable | mm | 130-580 | 130-660 |
| Distance From Spindle FaceTo Worktable | mm | 488 | 550 |
| Three Spindle Speed Range | mm | 36/36/24 | 36/36/24 |
| Processing Movement Mode | mm | Servo/Hydraulic Pressure | Servo/Hydraulic Pressure |
| Spindle Motor Power | KW | 7.5 | 7.5/11 |
| X/Y/Z/W Axis Servo Motor Power | KW | 2/2/3.9/1.5 | 2/3.9/4.9/1.5 |
| Total Power | KW | 18 | 25 |
| Machine Dimension | mm | 2500x2000x2600 | 2700x2400x2700 |
Product details:
FAQ:
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
